Our experience and expertise has attracted a wide range of large projects, installations and interesting projects - we've detailed some of our favourites below.
DIY SOS The Big Build
SCI Management are proud to have been part of the BBC's DIY SOS The Big Build team in Eckington Nr Evesham, Worcestershire.
We supplied two electricians and one electrical labourer to the project over a 9 day period, and were the first contractors onsite before everyone else, to isolate the existing supply and install temporary supplies to allow the build to start from day one. The task was to help transform a family home into a much more suitable environment and allow Antonia, to be able to come home for the first time in 3 years. We are still in touch with Antonia, and her mom, and hope that she will be well enough to come home soon.
We have met several great people through doing this project, and would happily do it again.
Time Business Centre
SCI Management were commissioned to install 48 new floor boxes and 278 Cat 6 data outlets within a purposed built fully finished building.
Catesby Property Group plc specialise in the promotion of land and commercial development. They had a purpose built office block (Now "The Time Business Centre") constructed in Doncaster, just off the M18. This had been fully carpeted and decorated but had no data outlets or sufficient power in any of the rooms. However they wanted to use it as a fully furnished and completely automated office block to allow multiple businesses to be able to simply walk in and set up business within less than 24 hours!
As a result of their objective, they wanted to have the entire building fit for purpose i.e. all system administration to be fully automated, allowing their clients to simply plug in and start working without the need for onsite system administration. As a result they contracted First Solutions in Worcester who offer fully flexible managed IT support, professional IT project delivery and expert IT advice throughout the UK to provide a turn key solution.
First Solutions contacted SCI to assist with getting the building ready for both their hardware and automated software solutions.
After a site visit we realised that the entire building had been fully carpeted, access to all rooms was sealed, and the building was in an immaculate condition. This meant that not only did we have to cut out all the floor boxes for each room, but also had to ensure everything went back in place as if we hadn't been there. Also to add to the complications, there wasn't a riser between the floors to link the two com's rooms together and no power in the ground floor comms room.
However this is exactly the type of challenge SCI enjoy, we have a wealth of knowledge in completing medium to large installations, and turning empty rooms into, functional, reliable offices, comms rooms, classrooms etc.
We started the project on the 2nd of October, with core drilling through the floor slab to allow access to the upper floors and installing a suitable riser, we also installed 2 x 42U (800 x 1000) linked communications cabinets for both data and active equipment and a suitable power supply within the ground floor comms room. We then carefully lifted the existing floor tiles, cutting them out to allow floor boxes to be installed and then replacing them and the surrounding carpet as if they had been their all along, whilst installing 278 Cat 6 data outlets throughout the building.
The project went like clock work, which allowed us to complete and fully commission the entire installation 3 days ahead of schedule. This allowed First solutions staff, not only to complete their installation early, but also allowing Catesby's clients to enter their new fully furnished offices much earlier than they had originally anticipated.
Since completing the ground floor installation, we have also completed the 1st floor, with a total number of data outlets now reaching 578 which was housed in the second 42U comm's cab we had installed previously.
If you have a building that you would like to convert into pretty much anything! Then please feel free to contact SCI Management for friendly advice and a reasonably priced quotation.
SCI helps Brinton Carpets install 4 new 32 colour looms.
Brinton's promise is to ensure all their carpets are made to consistent quality standard, and to meet customer demands on time with the best quality carpet in the market today. With technology advancing, they have decided to challenge the historic methods of weaving carpets and giving the customer a quality product in a rapid time frame to meet market demands, with the ability to produce complicated designs in the same time as a traditional plain carpet.
As a result of the innovative weaving methods, they have developed a true 32 colour weaving machine that allows them to produce carpets to a photograph finish. Being first to market was important for them, so they commissioned SCI to install the new machines main power supplies and design a lighting system to allow the operators to be able to work comfortably with different coloured pile, even when they are of a similar colour. To achieve this they needed a lighting system that would allow them to achieve a minimum of 750 Lux.
The additional complication was that the location of the new looms and creels. The ceiling height was over 6m away from the working area and they needed the lighting to be fixed and easily accessible. As a result we designed a frame that would sit over the creels, hold the light fittings securely and be in the correct position to achieve a minimum of 750 Lux at the correct height. However after completing the installation we actually achieved 1020 Lux which far exceeded their expectations.
The images opposite show the creels before and after we had completed our installation, plus the cable tray we installed to hold the supply, communication and emergency lighting cables which travelled the full width of the factory. Since completing the installation we have been commissioned to help in the continuous improvements throughout facility and have become one of Brinton Carpets main contractors for both electrical and computer networking installations. As a result we have recently converted an unused office into the new customer support office, with 48 telephone and computer network points, and relocated the residential call centre
In January 2013 SCI Management were commissioned to convert an industrial unit into an automated test facility
Steritrox are leading manufacturers of automated Whole Room Decontamination technology in Food and Medical Sectors and are devoted to meeting the tough demands of Food Hygiene and Infection Control in these sectors.
In January 2013 SCI Management were commissioned to convert an industrial unit into an automated test facility, to allow Steritrox to complete various industry trials and evaluate a new technology. The installation requirements were quite unique as they included multiple sub-systems and a data acquisition set-up that recorded ozone concentration and relative humidity across multiple locations in real-time.
Not only did we provide suitable single and three-phase supplies for their equipment, but also installed various communication cables, at several different voltage ratings to facilitate both control of our equipment and to give accurate readings via sensors installed throughout the facility. All cabling was contained neatly to a high professional standard which was important as they had to give live demonstrations to our clients.
Due to the unique and potentially dangerous processes involved each part of the processed had to be managed via a purpose built control panel as dispersion of the Ozone gas was critical and then the removal of the gas was equally as important. This entire project was completed within 3 weeks allowing the system for be commissioned and fully functional by February.
Gala casino new cabling
SCI Management are preferred suppliers of Double Diamond Casino and have provided many different solutions for both security and Telecommunication purposes over the years.
In December 2013, Double Diamond purchased 4 Casino's from the large corporate organisation Gala. As a result Double Diamond wanted to introduce new technology to their new clients and bring the recently purchased Casino’s up to their exacting standards. However to do this they had a very small window of opportunity namely December to complete the first phase of their take over.
SCI were requested to install new computer network cabling in 4 of their casinos all over the country. Bristol, Cardiff, Aberdeen and Stockton on Tees
All work was completed on time and on budget, but also the casino managers complimented SCI Management on out ability to work in somewhat difficult and busy conditions, but also how neat and tidy our installation was in comparison to the previous suppliers. As a result of our professional implementation we have been commissioned to install an entire network and electrical installation in their new offices in the New Year.

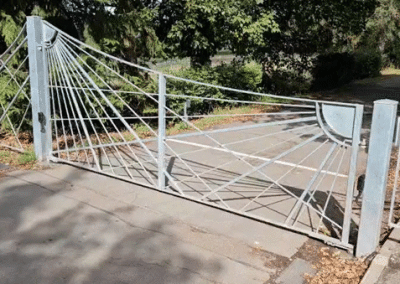

Gate Automation for GEM Estates
Gate Automation for GEM Estates
We were asked to try to fix one of our customer's gates, who couldn't understand why they constantly stopped working. The problem was that the original installation had used a electric underground motors.
These are great motors for the domestic market, but as this was a complex that has over 40 properties, the motors just couldn't handle the amount of traffic on a daily basis, and were failing.
As a result, we suggested that we upgrade the motors, to hydraulic pistons. These were more than suitable, to handle the amount of traffic at this facility.
Also we identified that the gates were not safe, as there was nothing to stop them from crushing either a car or a person.
As a result we installed photo cells and safety edges to bring them up to today's standards.
Listed building calls for specialist skills from electrical contractor
Historic buildings set their own special challenges for electrical contractors. Midlands-based SCI Management demonstrated all their listed buildings expertise when installing new cabling, a 165KVA commercial kitchen and external lighting in the historic Stanbrook Abbey, Worcestershire.
In 2012 Stanbrook Abbey, a Grade II listed building, began phase I of a development that would convert the Abbey from a home for Benedictine Nuns into a world class event and conference centre. As the aim was to retain the integrity, ambience and historic character of the building it was important that contractors were able to demonstrate expertise and skills in working on listed building. SCI Management undertook the work which was completed and commissioned In August 2012.
The first challenge was to ensure that the existing character of the building - grade II listed for both internal and external features throughout - was retained, while the entire building was totally rewired and brought up to today’s standards. The original building was built in 1838 and contains a lot of ornate features. So SCI Management had to ensure that new wiring could be installed, without damaging any of the existing architecture or periodic features, both on the ceiling and walls.
Routing electrical cables around listed buildings
The Abbey is made up approximately eight individual buildings added onto each other. So there was a huge challenge in routing cables between them while maintaining current industry standards. Just as importantly, Stanbrook Abbey had a strict requirement that there must be no containment on show, so all cables had to be hidden!
Fortunately, SCI Management had the necessary skills to route the cables and mains supplies, meeting strict electrical standards while ensuring work is hidden, without any visible sign or any damage to the existing architecture.
SCI Management were responsible for installing a brand new 165KVA fully electric commercial kitchen.
Installing 165KVA commercial kitchen
In addition to handling all the cabling, SCI Management was responsible for installing a brand new 165KVA fully electric commercial kitchen. This required some special planning as, in the early stages, there was only a total of 172KVA supply for the entire building.
The kitchen had to be completely electric because there was no gas supply to the main kitchen area. The Benedictine Nuns used to use wood burners and electrical appliances to do their cooking. But they never had to contend with a full commercial kitchen catering for 300 people, serving three to five courses, twice a day.
To manage the period until Western Power could install a new 300KVA supply, SCI Management had to optimize the kitchen utilities, ensuring that cooking staff could only have certain items on at the same time, and installing a safety mechanism to prevent the kitchen from completely shutting down the entire facility by overloading it.
Stone chapel walls set unique challenges for cabling
Electrical work in the chapel posed another challenge: to maintain the existing electrical installation, ensuring safety, while not being able to run any visible new wiring. The interior is made of stone, so walls could not be chased out to hide any cabling. Without chasing, any new cables had to be clipped directly to surfaces, but had to be hidden away so not to be seen. Such an approach requires the particular skills and attention to detail that SCI Management have built up over years of specialist work, as all cables that are visible need to be neat and tidy, and tucked into corners and crevices where possible.
External lighting captures character of historic building and grounds
SCI Management installed the external lighting along the drive and around the front of the building. The lighting had to be designed to allow for future expansion while being easily maintainable. It also had to capture the character of the building and particular garden features. SCI Management achieved this by combing up-lighting of certain trees, with step lights for the main entrance and lighting up the front of the building - again without any lights being easily visible.
Fully completed and commissioned
The entire project started March 2012 and was fully completed and commissioned in August 2012. SCI Management handed over a full O&M (Operations and Maintenance) manual highlighting cable routes, identification of all switch gear and electrical equipment used, plus the necessary health and safety requirements for all maintenance tasks to allow both the caretaker and relevant staff to maintain the building without the need for a skilled electrician.
Bishop Challoner Catholic College
Interactive whiteboards and computer network installed in Birmingham college
Bishop Challoner Catholic College is recognised as one of the most successful schools in Birmingham, delivering a high quality education to prepare young people for life in a fast advancing technological modern society. As part of its continuing development the School had built a new wing, and needed both the computer network and interactive white boards and projectors installed in four classrooms, along with a suitable sound system.
To carry out the project, Bishop Challoner turned to SCI Management - an electrical contractor with extensive experience in installing and commissioning audio visual installations and computer networks in schools and colleges.
The project took two weeks and required specialist expertise. For example, The interactive white boards had only a small window to fit into, so alignment of the projectors was critical. To meet the tolerances required SCI Management used a laser positional tool. This allowed the contractors to get the exact location of the projector lens in the middle of the screen.
All the work required a clean trip-free finish, minimum disruption to the ceiling, with all cables hidden away.
We also installed LED Lighting within the school which has been shown to improve health and productivity if staff and students. Not only that, but it could save you up to £26,000 pa! See below what the school is now saving in KVA since we changed the lighting.
Water Processing Plant
We were contracted to automate the process for a large scale water processing plant. Our solution gave them piece of mind, with a robust fail over solution.
Their production process relies on having over 100,000 ltrs of water pumped hourly through the entire facility.
We removed all of their old equipment, allowing one single control panel to control everything, and upgraded their electrical supply bringing it up to today's standards.
